致力于解決工廠自動潤滑

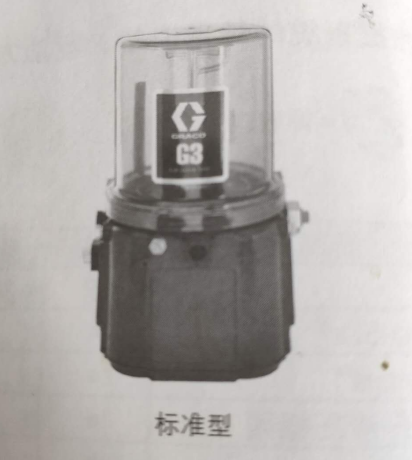

G3標準型
標配不含控制裝置，與獨立控制裝置或現有機器控制裝置結合使用，是一種低成本解決方案。部分型號能夠向外部控制裝置或PLC發送低液位信號。
注:1代表有
| 類別 | 儲存罐尺寸 | 部件號 | 電壓 | 掛壁 | 壓油盤 | 外部低液位 | 電源連接 | |
|
應用 |
潤滑脂 |
2升 |
96G000 | 12VDC | 1 | CPC | ||
| 96G003 | 12VDC | 1 | 1 | CPC | ||||
| 96G001 | 24VDC | 1 | CPC | |||||
| 96G005 | 24VDC | 1 | 1 | CPC | ||||
| 96G006 | 24VDC | 1 | 1 | CPC | ||||
| 96G002 | 90-240VDC | 1 | DIN | |||||
| 96G007 | 90-240VDC | 1 | 1 | DIN | ||||
| 96G008 | 90-240VDC | 1 | 1 | DIN | ||||
|
4升 |
96G038 | 12VDC | 1 | CPC | ||||
| 96G044 | 12VDC | 1 | 1 | CPC | ||||
| 96G040 | 24VDC | 1 | CPC | |||||
| 96G048 | 24VDC | 1 | 1 | CPC | ||||
| 96G053 | 24VDC | 1 | 1 | CPC | ||||
| 96G042 | 90-240VDC | 1 | DIN | |||||
| 96G055 | 90-240VDC | 1 | 1 | DIN | ||||
| 96G062 | 90-240VDC | 1 | 1 | DIN | ||||
|
8升 |
96G039 | 12VDC | 1 | CPC | ||||
| 96G045 | 12VDC | 1 | 1 | CPC | ||||
| 96G049 | 24VDC | 1 | 1 | CPC | ||||
| 96G041 | 24VDC | 1 | CPC | |||||
| 96G043 | 90-240VDC | 1 | DIN | |||||
| 96G056 | 90-240VDC | 1 | 1 | DIN | ||||
|
12升 |
96G057 | 90-240VDC | 1 | 1 | DIN | |||
| 96G171 | 24VDC | 1 | CPC | |||||
|
潤滑油 |
2升 | 96G050 | 24VDC | 1 | 1 | CPC | ||
| 96G059 | 90-240VDC | 1 | 1 | DIN | ||||
| 4升 | 96G051 | 24VDC | 1 | 1 | CPC | |||
| 96G060 | 90-240VDC | 1 | 1 | DIN | ||||
| 8升 | 96G052 | 24VDC | 1 | 1 | CPC | |||
| 96G061 | 90-240VDC | 1 | 1 | DIN |
